Shuangliu mechanical filter
Classification:
Shuangliu mechanical filter
Details
Use Purpose
This equipment is a filtering device developed based on a single-flow mechanical filter, used to remove suspended matter and impurities from boiler and industrial water.
Main Technical Characteristics
|
Specifications |
External Dimensions (mm) |
Working Pressure (MPa) |
Working Temperature (°C) |
Operating Flow Rate (m/h) |
Filter Material Diameter (mm) |
Design Maximum Output (t/h) |
Equipment Net Weight (kg) |
Load Weight (kg) |
|
SG-1000 |
Φ1016×3940 |
0~0.6 |
5~30 |
15~18 |
0.5~1 |
14 |
1673 |
6000 |
|
SG-1500 |
Φ1516×4290 |
31 |
2566 |
12000 |
||||
|
SG-2000 |
Φ2016×5100 |
56 |
4120 |
20000 |
||||
|
SG-2500 |
Φ2520×5400 |
88 |
6864 |
32000 |
||||
|
SG-3000 |
Φ3024×5650 |
127 |
9266 |
45000 |
Structural Dimensions (mm)
|
Specifications |
SG-1000 |
SG-1500 |
SG-2000 |
SG-2500 |
SG-3000 |
|
Φ1 |
1016 |
1516 |
2016 |
2520 |
3024 |
|
Φ2 |
630 |
980 |
1310 |
1720 |
1980 |
|
Φ3 |
20 |
24 |
24 |
24 |
24 |
|
H |
3940 |
4290 |
5100 |
5400 |
5650 |
|
H1 |
430 |
560 |
635 |
653 |
653 |
|
H2 |
776 |
956 |
1156 |
1192 |
1192 |
|
H3 |
920 |
1180 |
1400 |
1660 |
1800 |
|
H4 |
1246 |
1506 |
1906 |
1928 |
1928 |
|
L |
735 |
4015 |
1340 |
1590 |
1920 |
|
L1 |
819 |
949 |
1274 |
1278 |
1278 |
|
L2 |
303 |
333 |
413 |
453 |
453 |
|
A |
180 |
235 |
295 |
350 |
405 |
|
B |
160 |
210 |
250 |
300 |
350 |
|
M1 |
16 |
20 |
20 |
20 |
20 |
Nominal Diameter of Pipe (mm)
|
Purpose and Symbol |
SG-1000 |
SG-1500 |
SG-2000 |
SG-2500 |
SG-3000 |
|
Raw Water Inlet a |
80 |
100 |
150 |
200 |
200 |
|
Backwash Water Inlet b |
80 |
100 |
150 |
200 |
200 |
|
Filtered Water Outlet c |
80 |
100 |
150 |
200 |
200 |
|
Wastewater Outlet d |
80 |
80 |
80 |
100 |
100 |
|
Drain Outlet e |
80 |
100 |
150 |
200 |
200 |
|
Compressed Air Inlet f |
40 |
50 |
80 |
100 |
100 |
|
Air Vent g |
25 |
32 |
32 |
40 |
40 |
|
Discharge Port h |
100 |
100 |
100 |
100 |
125 |

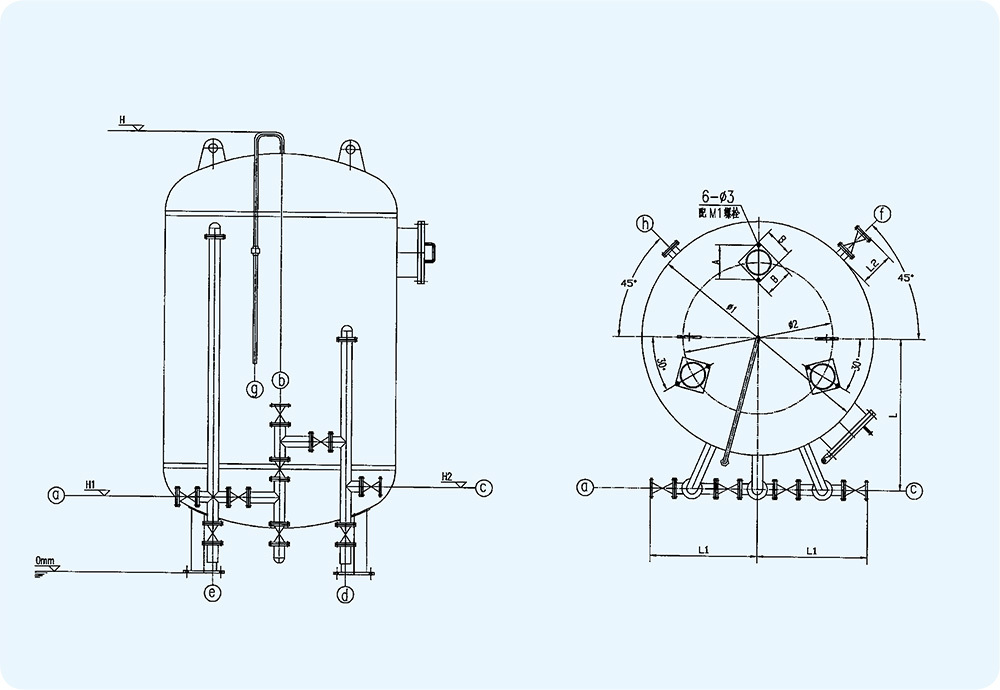

External Dimensions Diagram
